Heavy Duty Transformer Core Stacking Table with 9000kg Max Capacity Hydraulic Driving Mode and 2600x2400mm Table Size

Transformer Core Stacking Table Heavy Duty Sheet Core assembly Table

Description of transformer core stacking table FZT-9T

Transformer core stacking table FZT-9T is a heavy duty core assembly table, which is mainly used for stacking and tilting transformer iron cores. The transformer core stacking table can be used to stack and tilt large and medium transformer iron core. With a hydraulic station, the transformer core stacking table can tilt a stacked core with maximum weight 9000kg. The core stacking table features slow starting, smooth running and easy operation, etc.

Quick details of transformer core stacking table FZT-9T

l The table size:2600x2400mm

l Table height: 900mm

l Maximum capacity:9000kg

l Maximum thickness of stacking: 600mm

l Power: 7.5kw

l Color: optional

Main Components of transformer core stacking table

l Main frame

l Hydraulic station

l Linear guide

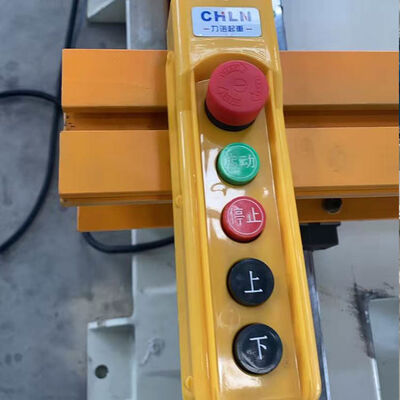

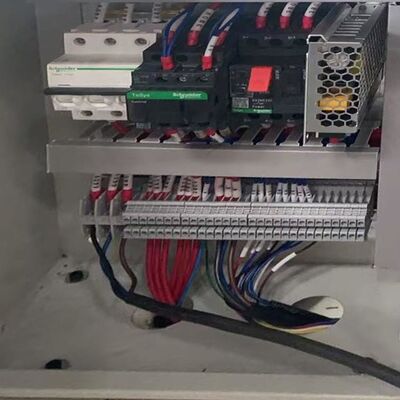

l Control panel

l Cylinder

l Motor

Main Parameters of transformer core stacking table

Typical standard specifications of transformer core stacking table FZT-9T are shown below and the stacking table can also be manufactured as requested.

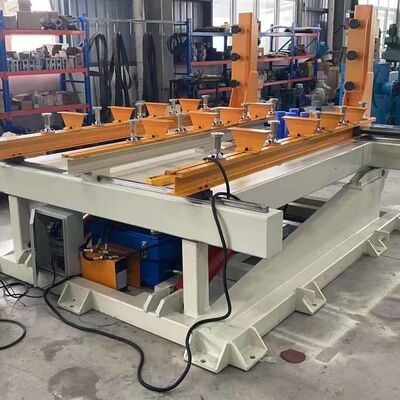

Fig 1: Transformer core stacking table FZT-5T's full view


Fig 2: Transformer core stacking table FZT-5T's tilting stacked core
