PLC Controlled TIG Welding Copper Foil Winding Machine with 600mm Foil Width for Transformers

Low Voltage Transformer Copper Foil Sheet Winding Machine With TIG Welding

Description of copper foil winding machine BRJ600-3

Model BRJ600-3 Copper Foil Winding Machine is a professional winding equipment specially designed for manufacturing transformer coils and equivalent components, compatible with both copper and aluminum foil winding processes. Equipped with three foil unwinders and dual insulation paper unwinders, this foil winding machine supports simultaneous winding of one, two or three layers of foil paired with one or two layers of insulating paper. The foil winding machine integrates a built-in TIG welding station to reliably join foil strips and conductive busbars. Powered by PLC and intuitive touchscreen control, the foil winding machine features user-friendly operation and straightforward parameter adjustment.

Quick details of copper foil winding machine BRJ600-3

• Maximum 600mm foil width
• Winding both copper foil and aluminium foil
• Foil conductor ID 500mm, Maximum OD 1000mm
• TIG welding unit
• Pressing roller
• Customized color

Technical parameters of copper foil winding machine BRJ600-3

Typical standard specifications of copper foil winding machine BRJ600-3 are shown below and the copper foil winding machine can also be manufactured as requested.

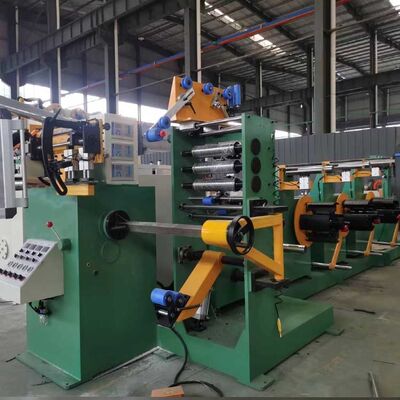

Fig 1: Copper foil winding machine BRJ600-2's front view

Fig 2: Copper foil winding machine BRJ600-2's insulation decoiler
