Name: Automatic Wire Coiling Machine Transformer Coil Winding Machine
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: ZPX600
Price: 11,500.00 USD
Availability: InStock

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Ame de produit: machine à enrouler de la bobine

Usage: Fabrication de bobines de fil

Puissance du moteur: 4KW

Vitesse de rotation: 0 | 200rpm

Matériau en fil: fil Cu ou fil Al

Type de fil: fil plat ou rond

Couleur: Comme demande

Garantie: 12 mois

Mettre en évidence:

600mm Max Winding Width Automatic Coil Winding Machine

5X12mm Flat Wire Transformer Coil Winding Machine

Ø0.3 ~ 5.0mm Round Wire Wire Coiling Machine

Informations de base

Lieu d'origine: CHINE

Nom de marque: STT

Certification: CE

Numéro de modèle: ZPX600

Conditions de paiement et expédition

Détails d'emballage: Emballage de mer

Délai de livraison: 35 jours

Conditions de paiement: T / t, l / c

Capacité d'approvisionnement: 100 sets par an

Galerie

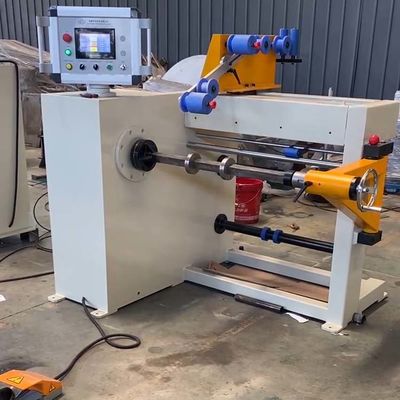

Automatic Wire Coiling Machine Transformer Coil Winding Machine

Description de produit

Automatic Wire Coiling Machine Transformer Coil Winding Machine

Introduction of Automatic Coil Winding Machine ZPX600

The ZPX600 is a professional wire coil winder designed for transformer coils and similar applications. This versatile machine handles both copper and aluminum wire with precision. Its servo motor-driven wire guide ensures accurate movement and automatic wire laying during operation. Equipped with PLC and HMI controls, the ZPX600 offers high automation and user-friendly operation, featuring slow starting and smooth running capabilities.

Main Features

Slow starting mechanism
Smooth running operation
Strong pulling force
High reliability and durability
Precision accuracy
Full-featured functionality

Technical Specifications

Parameter	Value
Center Height	900mm
Square Shaft Size	40x40x900mm
Winding Width	600mm max.
Servo Motor Power	0.75kw
Winding Speed	0 ~ 200 rpm
Max. Flat Wire Size	5X12mm
Round Wire Capacity	Ø0.3 ~ 5.0mm
Finished Coil OD.	Ø600mm max
Counting Mode	5-digit counting
Counting Turn Range	0 - 9999.9
